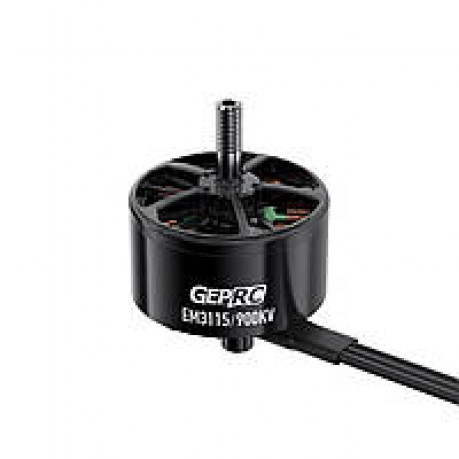

GEPRC EM3115 900KV Motor

Feature

1.  New EM series motors，mainly designed for long range FPV.
2. High-strength M5 steel shaft
3. High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM3115 900KV Motor
• Max Watt: 1620W
• Peak current: 65A
• Interphase resistance: 46mΩ
• Propeller: 8-10inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: φ37.5mmx30mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 310mm/18AWG
• ESC: 60A-80A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single strand copper winding
• Weight: 115g(included wire)
• Suitable for :8-10 inch long range FPV

Includes

1 x EM3115 motor

4 x M3*11 round head screws

1 x M5 anti-slip nut
